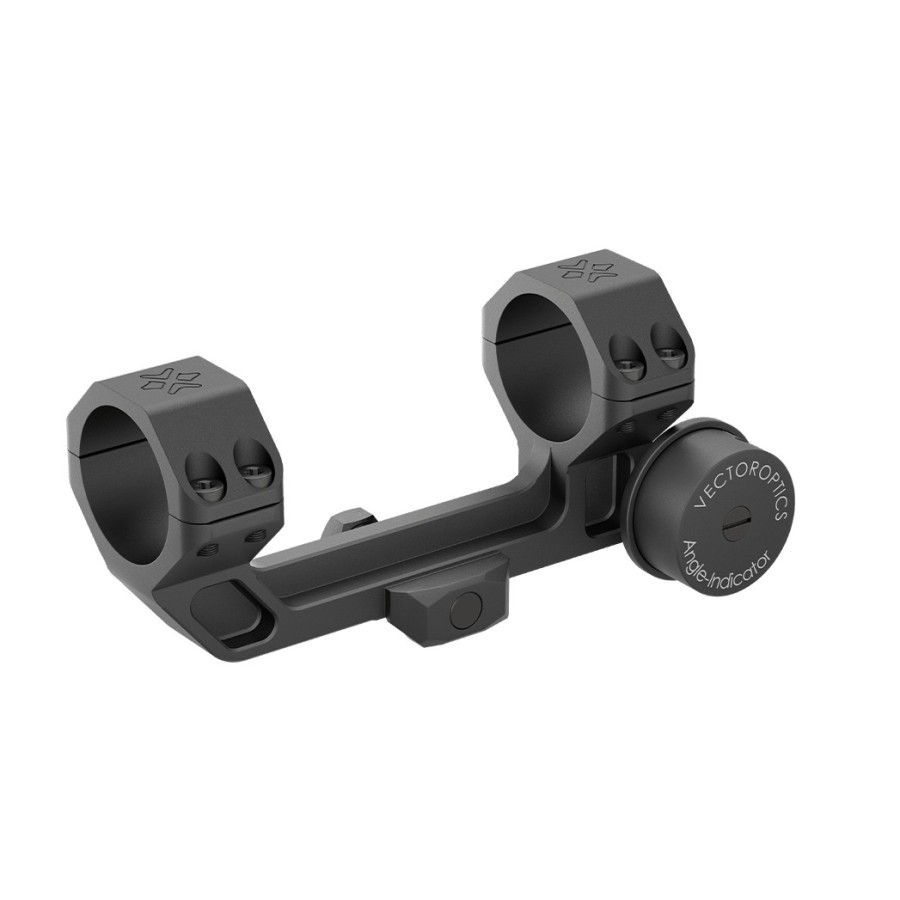

Vector Optics SCACD-24 30 mm cantilever mount with cosine indicator

What it is and what it is for
One-piece cantilever mount designed to secure 30 mm tube rifle scopes to a Picatinny rail. It includes a cosine angle indicator and an integrated bubble level to assist alignment and precision shooting at long ranges.

Key characteristics
Rings for a 30 mm tube; overall height 40 mm and center height (bottom to ring center) 38 mm. Overall length 138 mm and weight 167 g. Made from 6061-T6 aluminum alloy with full CNC machining; each ring uses four screws. Black matte finish. Mounting interface is a Picatinny system (21 mm) with two crossing bolts and an anti-retreat bar. Ring cap torque: 18–22 in/lbs (2.0–2.5 N·m). Base torque: 30–35 in/lbs (3.4–4.0 N·m).

Compatibility
Compatible with scopes that have a 30 mm tube and with Picatinny rails (MIL-STD-1913 / 1913 Picatinny).

Package contents
T15 Torx wrench and retail packaging.

Usage notes
The angle indicator and level assist in maintaining correct orientation for long-range shots. Observe the specified torque values when mounting the rings to ensure secure attachment.
