Avata 635 thermal clip-on to mount in front of day optics; 640×512 sensor, 35 mm lens, NETD <20 mK and approx. 7 h runtime.

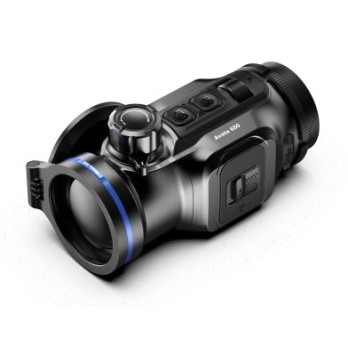

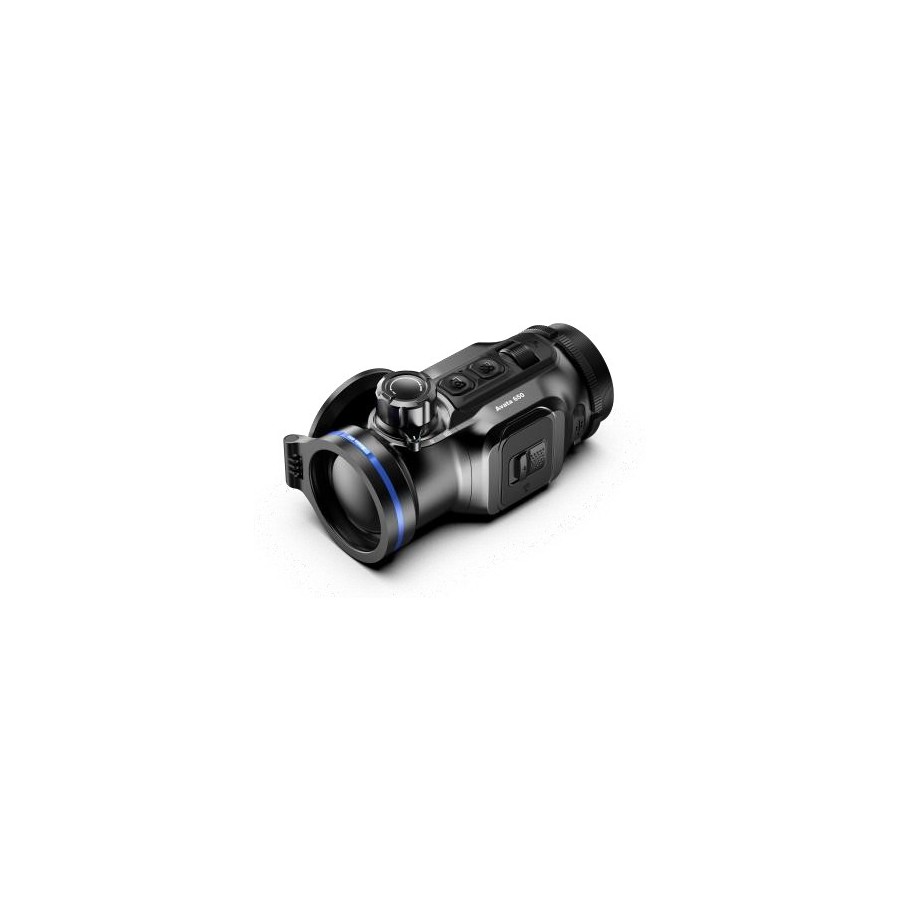

Conotech Avata 635 thermal clip-on
CT-AVATA-635
€2,339.00
Tax included
Avata 635 thermal clip-on to mount in front of day optics; 640×512 sensor, 35 mm lens, NETD <20 mK and approx. 7 h runtime.
Description
What it is and what it is for
The Avata 635 is a thermal clip-on designed to be mounted in front of a day optic to provide thermal imaging for hunting, surveillance, search & rescue and professional applications. It enables a daytime riflescope to deliver thermal imagery without removing the host optic.
Key characteristics
It features an uncooled VOx detector with a 640 × 512 pixel array, 12 m pixel pitch and 814 m spectral band; the technical documentation indicates NETD below 20 mK. Optics are 35 mm with a base magnification of 1×, giving a field of view at 100 m of 22 × 17.5 m and a close focus from 2 m. Weight without batteries is 450 g and dimensions are 67 × 70 × 145 mm. Power is by two removable 18500 cells and external 5 V USB-C input; runtime at 22 °C is about 7 hours. The unit includes 64 GB internal memory, an OLED display, photo/video/audio recording, Wi-Fi streaming and firmware update via app.
Durability and mounting
The Avata 635 is rated IP67 and its shock resistance is specified at 7000 J. It is intended for quick magnetic clip-on mounting and the manufacturer indicates no re-zeroing is required after attachment.
Compatibility
The manual explains the clip-on mounting method but does not list exhaustive compatible scope models or objective diameters. Verify physical fit and mounting method against your day optic when compatibility with a specific model is required.
The Avata 635 is a thermal clip-on designed to be mounted in front of a day optic to provide thermal imaging for hunting, surveillance, search & rescue and professional applications. It enables a daytime riflescope to deliver thermal imagery without removing the host optic.
Key characteristics
It features an uncooled VOx detector with a 640 × 512 pixel array, 12 m pixel pitch and 814 m spectral band; the technical documentation indicates NETD below 20 mK. Optics are 35 mm with a base magnification of 1×, giving a field of view at 100 m of 22 × 17.5 m and a close focus from 2 m. Weight without batteries is 450 g and dimensions are 67 × 70 × 145 mm. Power is by two removable 18500 cells and external 5 V USB-C input; runtime at 22 °C is about 7 hours. The unit includes 64 GB internal memory, an OLED display, photo/video/audio recording, Wi-Fi streaming and firmware update via app.
Durability and mounting
The Avata 635 is rated IP67 and its shock resistance is specified at 7000 J. It is intended for quick magnetic clip-on mounting and the manufacturer indicates no re-zeroing is required after attachment.
Compatibility
The manual explains the clip-on mounting method but does not list exhaustive compatible scope models or objective diameters. Verify physical fit and mounting method against your day optic when compatibility with a specific model is required.
